Summary: Special mission aircraft operate in challenging and sometimes dangerous environments. Keeping crew, passengers, and equipment safe sometimes requires a robust ballistic protection system. But designing a system is no easy task. It requires making a number of important decisions.
Aircraft expected to execute critical operations are more than just planes or helicopters. They are assets that require strategic protection. Whether a mission is medical evacuation, search and rescue, tactical support, or even border patrol, special mission aircraft frequently operate in unpredictable environments. Ensuring the safety of both flight crew and passengers is non-negotiable. And sometimes, doing so demands specialized armor.
Safety often boils down to the quality of an aircraft's aviation ballistic protection system. Choosing such a system is not an easy task. It is a complex process built on decisions that impact everything from aircraft weight to flight performance and regulatory compliance. None of the involved decisions can be made lightly.
Here at LifePort, we work with procurement managers, corporate executives, and personnel from both the military and first responder agencies to evaluate and choose the right ballistic protection systems for their special mission platforms.
Start by Defining the Threat
The starting point for aviation ballistic protection is defining the specific threats the aircraft is likely to face. In ballistic armor, two primary standard frameworks can handle nearly any type of threat:
1. National Institute of Justice (NIJ)
NIJ standards are primarily designed for law enforcement and domestic security applications. Within this framework there are multiple levels. For example, Level IIA protects against handgun fire, while Level IV protects against armor-piercing rifle fire. The standards are commonly utilized by law enforcement air-support units.
2. NATO Standardized Agreement (STANAG)
STANAG 4569 standards are the benchmark for military aircraft. These standards are applied to evaluate protection against a wider range of threats including:
-
Heavy artillery
-
Fragmentation
-
Explosive blasts
-
High-caliber armor-piercing rounds
When we evaluate ballistic protection for special mission aircraft, we match a system's rating directly to operational risk assessments. This is necessary because different types of aircraft face different threat profiles. The threats against a homeland security helicopter in an urban area will not be the same as those faced by an international military transport operating in a combat setting.
Matching a ballistic system's rating to operational risks also allows us to avoid over-specifying aircraft armor. This helps us maintain performance without sacrificing protection. Conversely, we do not want to under-specify, either. Doing so will endanger lives.
The Weight vs. Performance Conundrum
Designing ballistic protection for special mission aircraft creates the same conundrum custom interiors are known for: finding the right balance of weight and performance. Weight is the enemy of flight. But we cannot design a ballistic protection system to be so lightweight that it does not get the job done.
Our biggest challenge is the simple reality that every pound of armor reduces an aircraft's operational capabilities. Extra weight decreases fuel efficiency, flight range, and top speed. It also reduces an aircraft's payload capacity. That means fewer passengers or eliminating mission-essential equipment.
We often find the right balance by utilizing state-of-the-art materials, including:
-
Advanced Plastics – While materials like steel and aluminum are being phased out, they are being replaced by ultra-high-molecular-weight polyethylene (UHMWPE) materials. These are advanced plastics with embedded fibers that are both incredibly lightweight and highly effective against a variety of threats.
-
Ceramic Composites – Ceramic composites, like boron carbide and silicon carbide, act as a defensive shield by breaking projectiles on impact. Ceramic armor is especially effective against high-velocity, armor-piercing rounds.
Both UHMWPE plastics and ceramic composites weigh considerably less than steel and aluminum. By employing them, we can maximize aircraft defense while protecting the flight envelope and maintaining operational control.
Permanent vs. Modular Integration
For many of our customers, decisions about integration need to be made. For example, does an aircraft operator prefer a permanently integrated armor system or would the vehicle be better served with a modular configuration? Once again, defining expected threats plays a role in this decision.
1. Permanent Integration
Permanent ballistic protection is integrated directly into the airframe structure and/or interior linings. On new aircraft, this is done during manufacturing. Permanent integration of an existing aircraft occurs during a complete overhaul.
Either way, the permanent approach minimizes aerodynamic drag. It ensures more comprehensive coverage and a seamless fit. Permanent integration more effectively protects avionics, engines, fuel cells, etc. But there is a clear downside: permanency introduces an equally permanent weight penalty.
2. Modular Integration
Modular ballistic protection is designed around quick-release mechanisms and localized panels that can be installed and removed on a per-mission basis. Installation is largely determined by the mission's specific threat level.
The modular approach offers flexibility that allows a single airframe to transition from a lightweight search-and-rescue configuration to a hardened tactical one in just a few hours. Modular integration allows the same aircraft to be used for different types of missions with very different threat profiles. The downside is that protection can be less robust.
Identifying Vulnerable Zones
The next decision on the table is what to actually protect. In other words, what zones are most critical based on expected threats? We separate a special mission aircraft into zones as follows:
-
Flight Deck – The flight deck is arguably the most important zone. Pilot and copilot must be protected using ballistic floor panels, armored seats, ballistic glass, etc.
-

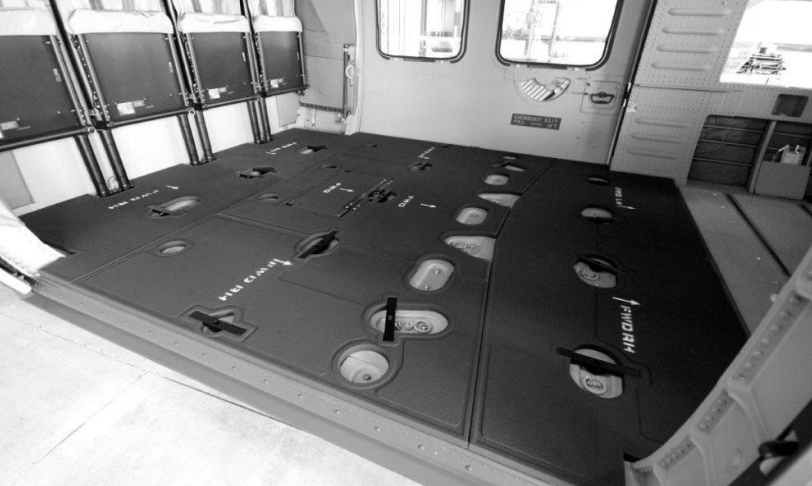

Cabin – Aircraft carrying passengers or vital equipment must be protected against threats to the cabin. We utilize threat-appropriate materials to line both cabin walls and floors.
-
Critical Systems – The final zone includes those portions of the aircraft housing critical systems. Ballistic protection addresses threats to fuel lines, actuators, gearboxes, and even communication and surveillance equipment.
A ballistic failure in any one of these zones could lead to disaster. To ensure that every mission goes off without a hitch, we carefully consider each zone and how it can be best protected based on assumed threats and the customer's preference for permanent or modular integration.
Designing ballistic protection for special mission aircraft is a balance between threat mitigation, weight management, and regulatory compliance. It is best left to specialists who understand how ballistic protection systems work. LifePort is one such expert. We have been an industry leader for decades.
FAQs
What kind of weight penalty does basic ballistic armor impose?
The exact weight depends entirely on a combination of coverage area and material choices. Steel and aluminum can add 10-12 pounds per square foot. Advanced materials can reduce that to 3.5-5.5 pounds.
How long does modular system installation and removal take?
A well-designed modular system can usually be installed and removed in about an hour, when the work is done by two experienced technicians.
Is NIJ-rated ballistic protection suitable for military applications?
Generally, it is not. NIJ standards are excellent for civilian threats. Military applications require protection against combat-specific hazards, which is why STANAG 4569 standards are applied.
Does adding ballistic protection require new certification?
No. However, an amendment to the existing airworthiness certification is necessary. The armor manufacturer or a certified engineering partner must prove compliance before an amendment is granted.
Does aviation armor require special maintenance?
Unlike ground vehicle armor, aviation armor experiences extreme temperature fluctuations, vibrations, and chemical exposure. Aviation systems require more maintenance, including regular inspections and immediate repairs.
